Carbonated Beverage Filling Line

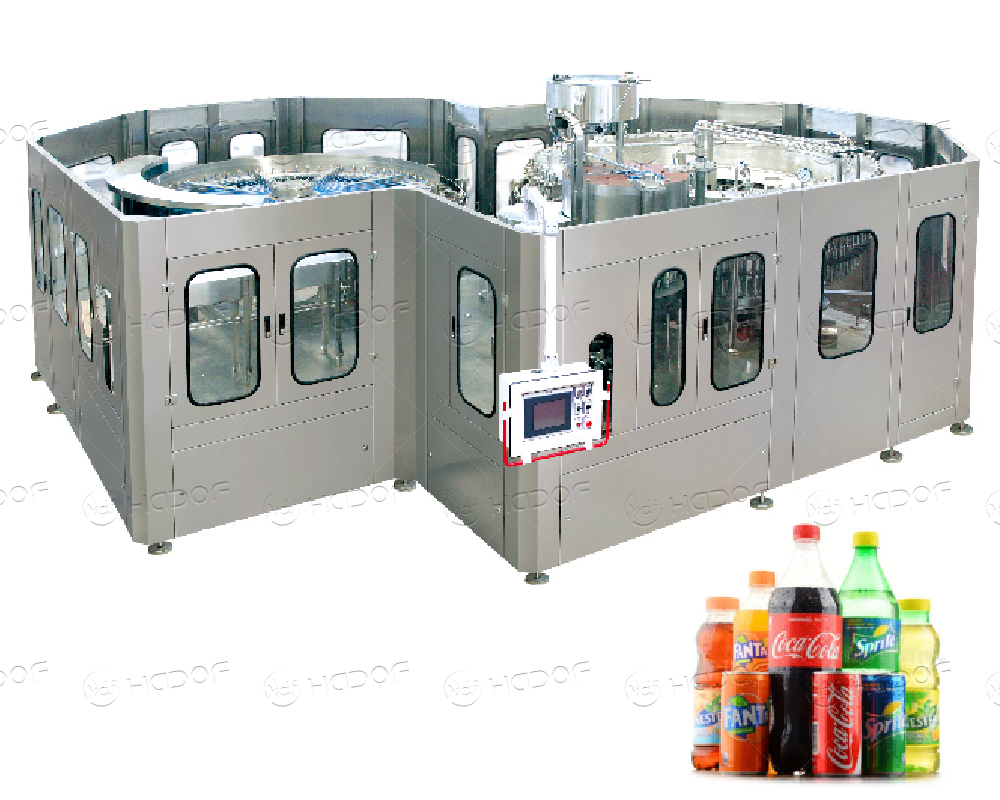

Our carbonated beverage filling line equipment integrates the three functions of rinsing, filling and capping into one to achieve full automation. With the bottleneck technology, bottle changing only requires adjusting the height of the conveyor chain, which is faster and more labor-saving. Whether it is bottled, canned or PET bottles, it can meet high production needs while maintaining stable filling accuracy and safety. It has an intelligent operation interface to improve efficiency and reduce labor costs.

Equipment Type:Automatic
용량:1000-28000 BPH
Filling Method:Aseptic Filling/Isobaric Filling
Equipment MaterialSUS304/316 food grade stainless steel
Bottle Type:PET round or square bottle, Bottle diameter 50-115mm, Bottleheight 160-320mm
Applicable Beverage Types:Coke/Soda/Sparkling Water

텔: +86 371-86582811
무리 & whatsapp: +86 15239453015
이메일: info@hadofmachinery.com

노르웨이 타임 랩스
놀다놀다
main image- 0
main image- 1
main image- 2
main image-3
main image-5
main image- 4
이전 화살표
다음 화살표
  • Working Process
  • 매개 변수
  • 특징
  • Details
  • 우리의 서비스

1. Flushing And DisinfectionWill be treated with ultraviolet or high-temperature steam disinfection system to remove the presence of bacteria or microorganisms.2. 충전재The automatic filling machine accurately fills water into the bottle according to the set capacity (such as 500ml, 1엘, etc.) to ensure the accuracy and speed of filling without losing quality.3. Capping:The automatic capping system correctly matches the bottle cap with the bottle to ensure that the bottle cap is tightly closed and the water quality in the bottle is not contaminated.

ModelWashing NosFilling NosCapping Nos용량MeasurementPower
HDF8/8/38831000BPH2000x1500x2500mm1.5kw
HDF14/12/5141253500BPH2360x1770x2700mm2.0kw
HDF16/16/5161655000BPH2760x2060x2700mm2.2kw
HDF24/14/8242488000BPH2800x2230x2700mm3.0kw
HDF32/32/83232812000BPH4215x2960x2700mm4.0kw
HDF40/40/1040401015000BPH4360x3300x2700mm7.5kw
HDF50/50/1250501218000BPH5900x3300x2700mm7.5kw
HDF60/60/1560601521000BPH5770x5288x2700mm11kw
HDF72/72/1872721828000BPH6540x4900x2700mm11kw

1.Design Science:Micro-pressure filling, faster and more stable filling speed. The main machine adopts advanced PLC programming automatic control, and key electrical components are all internationally renowned brands. The whole machine is scientifically and reasonably designed, with high output and low failure rate.2. Fully Automatic Integration:Our filling line integrates multiple functions such as bottle washing, 충전재, and capping. It is easy to operate, saves space, and provides you with a one-stop solution.3. Energy Saving:Our filling line design focuses on reducing water and electricity consumption, helping you save production costs and enhance the sustainable development capabilities of the enterprise.4. Stability And Durability: The equipment uses high-quality materials and precise manufacturing processes, with a long service life and a low failure rate. The filling line can operate stably for a long time and is easy to maintain.5. International Standards:The equipment complies with international standards such as ISO and CE, meets the quality certification requirements of different countries and regions, and provides global technical support to ensure equipment maintenance and service.6. Customized Services We provide tailor-made bottled water filling line solutions according to your specific needs, supporting flexible configuration of various bottle shapes, capacities and production scales to ensure a perfect fit for your production requirements.

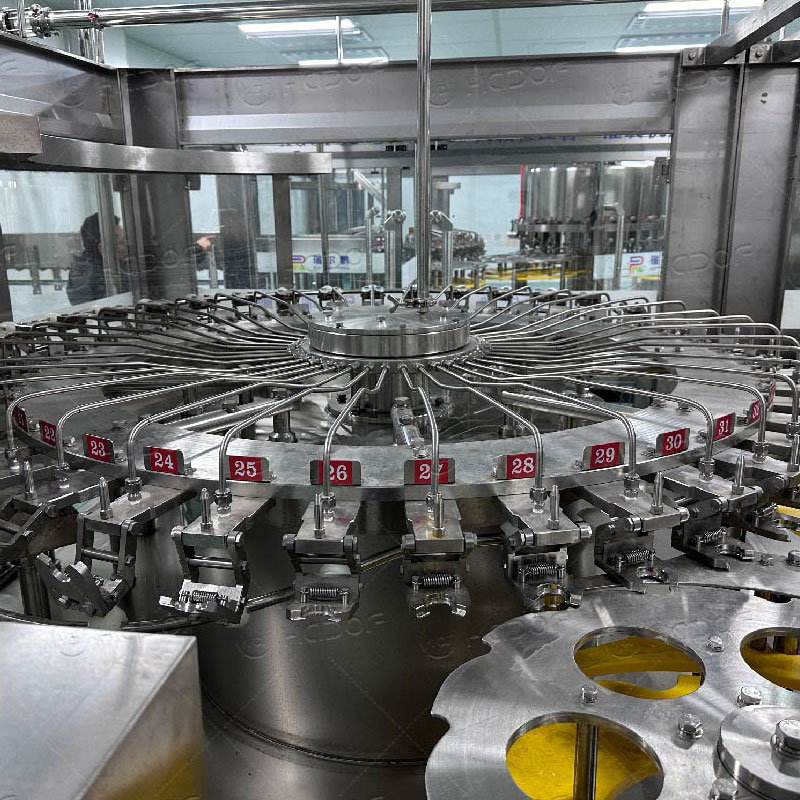

1. Washing Part 1.The air conveying device that enters the bottle channel is directly connected to the bottle dial 2.All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean. 3.304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing. 4.304/316 stainless steel washing pump make the machine more durable.

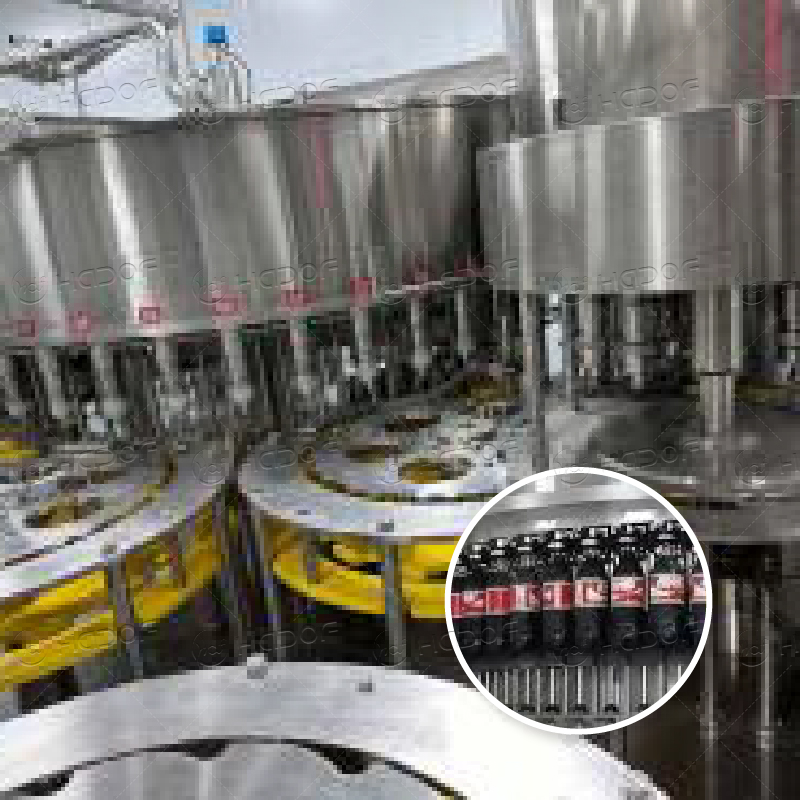

2. Filling Parts 1.304/316 Stainless steel high precision filling nozzle 2.Filling volume adjustable in fine rank, same liquid level after filling 3.All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean 4.304/316 stainless steel filling pump 5.Efficient spray nozzle rinse thoroughly and save water for flushing

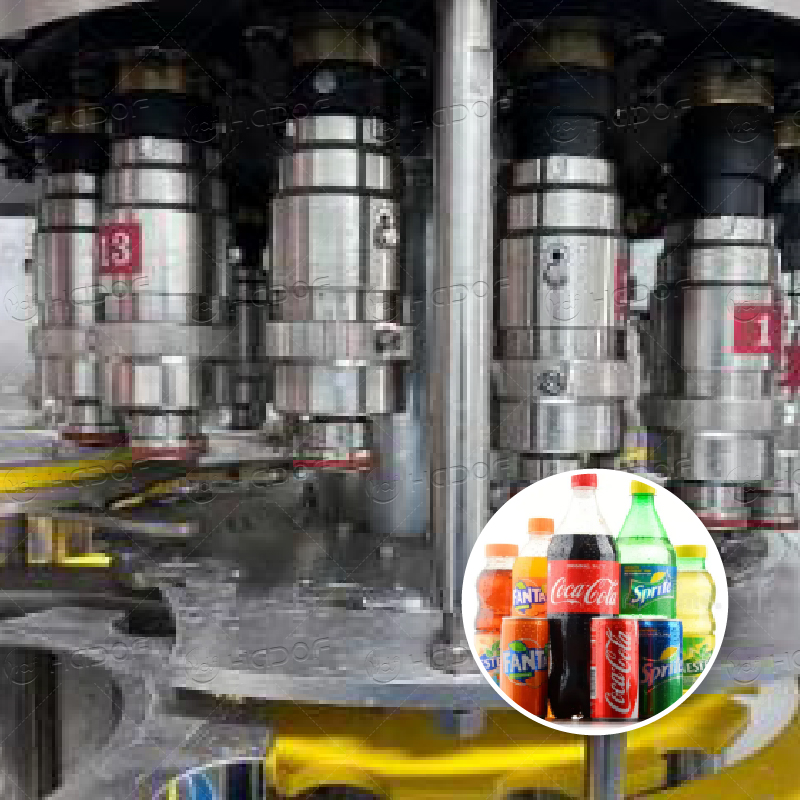

3. Capping Parts 1.Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping 2.All 304/316 stainless steel construction 3.No bottle no capping 4.Automatic stop when lack of bottle 5.Capping effect is stable and reliable, Defective rate ≤0.2%

  • 완전한 해결책

    완전한 해결책

    제품 기술에서 수처리까지의 전체 플랜트 설계 공학 제공, 전처리, 병다, 충전재, 캡핑, 코딩, 라벨링, 운송, 포장, 지능형 창고, 등. 고객 요구에 따라.

  • 혁신적인 기술

    We efficiently combine the latest industry technologies to develop and transform equipment to improve production capacity, helping you stay at the forefront of the industry and gain market competitiveness.

  • Quality and Testing

    Quality and Testing

    Hadof has invested heavily in cutting-edge R&D, advanced processing and testing equipment. Digital projector,Endoscope mirror,Portable spectrum Analyzer,Ultrasonic flaw detector,Metallurgical Microscope and so on.

  • Customized Services

    We will customize equipment and solutions based on your site, budget and other specific needs to ensure that each device perfectly meets your needs and helps you grow.

Global Markets As a renowned food and beverage manufacturer, we operate in global markets and have a full system in place to efficiently deliver our products to customers around the world. Our commitment to quality and safety is reflected in the certifications we adhere to, which ensure compliance with US and European standards. In order to better serve our customers, we have established branches and representative offices in strategic locations around the world. Our operations cover Russia, USA, Indonesia, Chile, Colombia and Algeria.
