Film Shrink Packing System

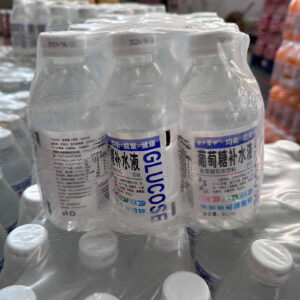

A film packaging machine is a type of equipment used in the packaging industry to wrap products in plastic film. These machines are designed to automate the process of packaging items in a protective film, which helps preserve the product, extends shelf life, and enhances presentation. Film packaging is commonly used for various products, including mineral water, 음료, wine, beer, food, electronics, cosmetics, and so on. The heat shrink packaging machine is newly designed packaging equipment based on the characteristic of shrink film contracting when heated. It can wrap individual bottles or cartons with shrink film, followed by heating, shrinking, cooling, and shaping to form bundled packaging. The packaged products are tightly secured, neatly shaped, aesthetically pleasing, and easy to open.

텔: +86 371-86582811
무리 & whatsapp: +86 15239453015
이메일: info@hadofmachinery.com

film packaging main
film packaging main (1)
film packaging main (2)
film packaging main (3)
film packaging main (4)
film packaging main (5)
이전 화살표
다음 화살표
  • Working Process
  • 매개 변수
  • 특징
  • Details
  • 우리의 서비스
The shrink film packaging machine is based on the characteristic of the packaging film shrinking when heated. It uses a photoelectric switch sensor for online detection, and the signals collected are centrally controlled and processed by a PLC (programmable logic controller) program. The machine employs a conveyor belt for continuous carton feeding, and a continuous push rod to wrap bottles with film. The process includes heating, cutting, sealing the package, shrinking the film in a heat tunnel, and cooling and shaping the package with cold air to complete the entire packaging process.
Power 28 kw PE film thickness:0.03-0.1 mm, width:≤600 mm
Air consumption 25 m³/h,≥0.6 M pa Weight 1.5 ton
Speed 20-25 bag/min Dimension (L × W × H) 12×1.1×2.1 m
Bottle Diameter 60-90 mm,height≤330 mm Wrappage max size (L × W × H) 2.4×0.65×0.45 m
    1. Film packaging material is relatively inexpensive, which makes these machines cost effective for high volume packaging.
    2. The compact size of film wrapped packages makes them easier to store and transport compared to bulk packaging.
    3. Customized packaging. A variety of film options, such as biodegradable films, to meet branding and environmental goals.
    4. Provides tamper evidence, moisture barrier, and physical protection during transport.

1.Plastic films can be customized for thickness, type, and design. The film material can be transparent, colored, or printed, depending on the application.

2.Heat sealers are used to bond the edges of the film together to form a tight seal, either by heat or pressure. Cold sealing is used for certain sensitive products that might be damaged by heat.

3.In most film packing machines, the film is cut after sealing to create individual packages. The cutting system ensures clean, precise cuts for neat, uniform packaging.

  • 완전한 해결책

    완전한 해결책

    제품 기술에서 수처리까지의 전체 플랜트 설계 공학 제공, 전처리, 병다, 충전재, 캡핑, 코딩, 라벨링, 운송, 포장, 지능형 창고, 등. 고객 요구에 따라.

  • 혁신적인 기술

    We efficiently combine the latest industry technologies to develop and transform equipment to improve production capacity, helping you stay at the forefront of the industry and gain market competitiveness.

  • Quality and Testing

    Quality and Testing

    Hadof has invested heavily in cutting-edge R&D, advanced processing and testing equipment. Digital projector,Endoscope mirror,Portable spectrum Analyzer,Ultrasonic flaw detector,Metallurgical Microscope and so on.

  • Customized Services

    We will customize equipment and solutions based on your site, budget and other specific needs to ensure that each device perfectly meets your needs and helps you grow.

Global Markets As a renowned food and beverage manufacturer, we operate in global markets and have a full system in place to efficiently deliver our products to customers around the world. Our commitment to quality and safety is reflected in the certifications we adhere to, which ensure compliance with US and European standards. In order to better serve our customers, we have established branches and representative offices in strategic locations around the world. Our operations cover Russia, USA, Indonesia, Chile, Colombia and Algeria.
